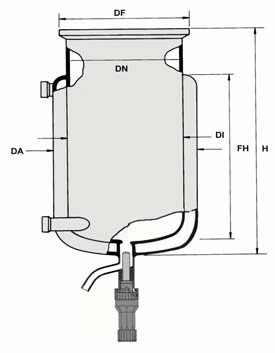

Reaction vessels jacketed, DN60
- flat flange Schott with groove for O-ring
- bottom valve « T » 10 mm, without dead volume
|
Reference
|
Capacity
(ml)
|
Height
(mm)
|
Fill height
(mm)
|
DA
(mm)
|
DI
(mm)
|
|
3.150.601
|
100
|
125
|
55
|
100
|
70
|
|
3.150.602
|
150
|
135
|
65
|
100
|
70
|
|
3.150.603
|
250
|
170
|
100
|
100
|
70
|
|
3.150.605
|
500
|
255
|
185
|
100
|
70
|
Bottom valve : ptfe (standard), ptfe with integrated Pt100 or pneumatic.
Jacket connections: DN15 (standard), hose connection, GL screw thread or Rotulex.
Special versions : graduation, flat bottom, coating, … : on request
